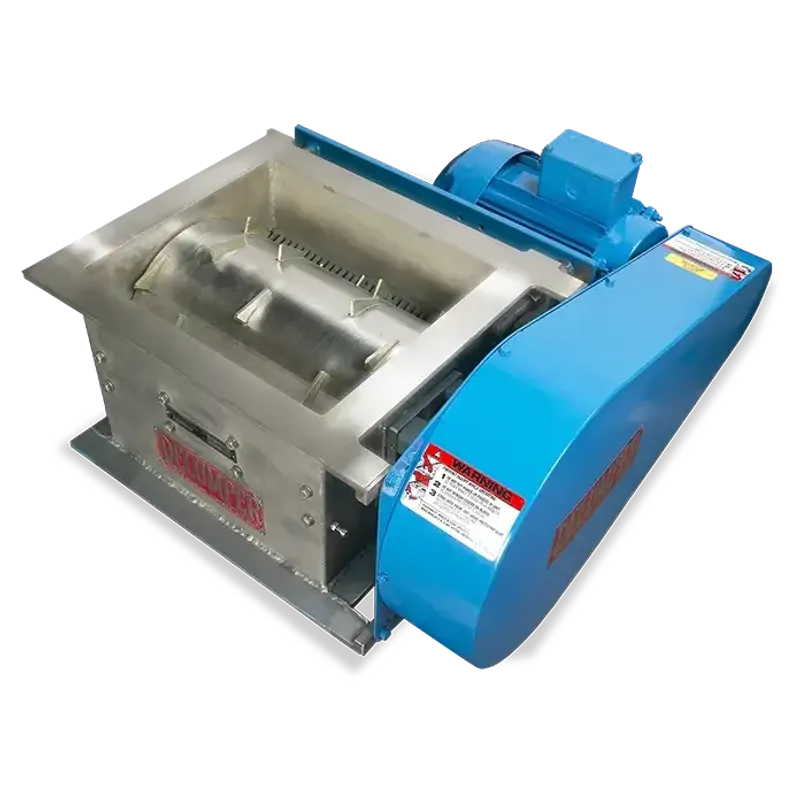

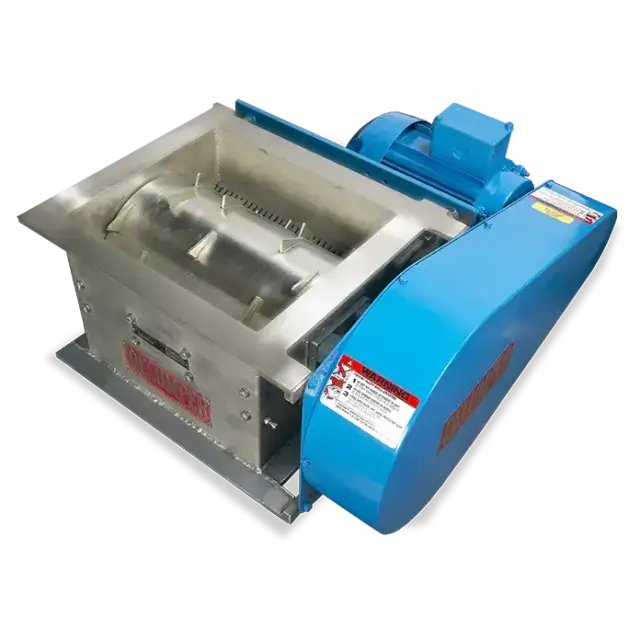

DELUMPER® L
Screenless low-speed crusher, minimal fines or heat
The DELUMPER® L Series are heavy-duty, low-speed lump breakers that crush agglomerates, oversized solids, and tough materials into consistent, manageable sizes for downstream processing.
Key Features
- Quiet Low-Vibration Operation
- Precision Reduction
- Minimal Fines
- Low Maintenance
- No Screens Required
Established 1918 · Made in USA · Livingston, NJ
Product Overview
Delumper L Series Capabilities
- Cutter Technology

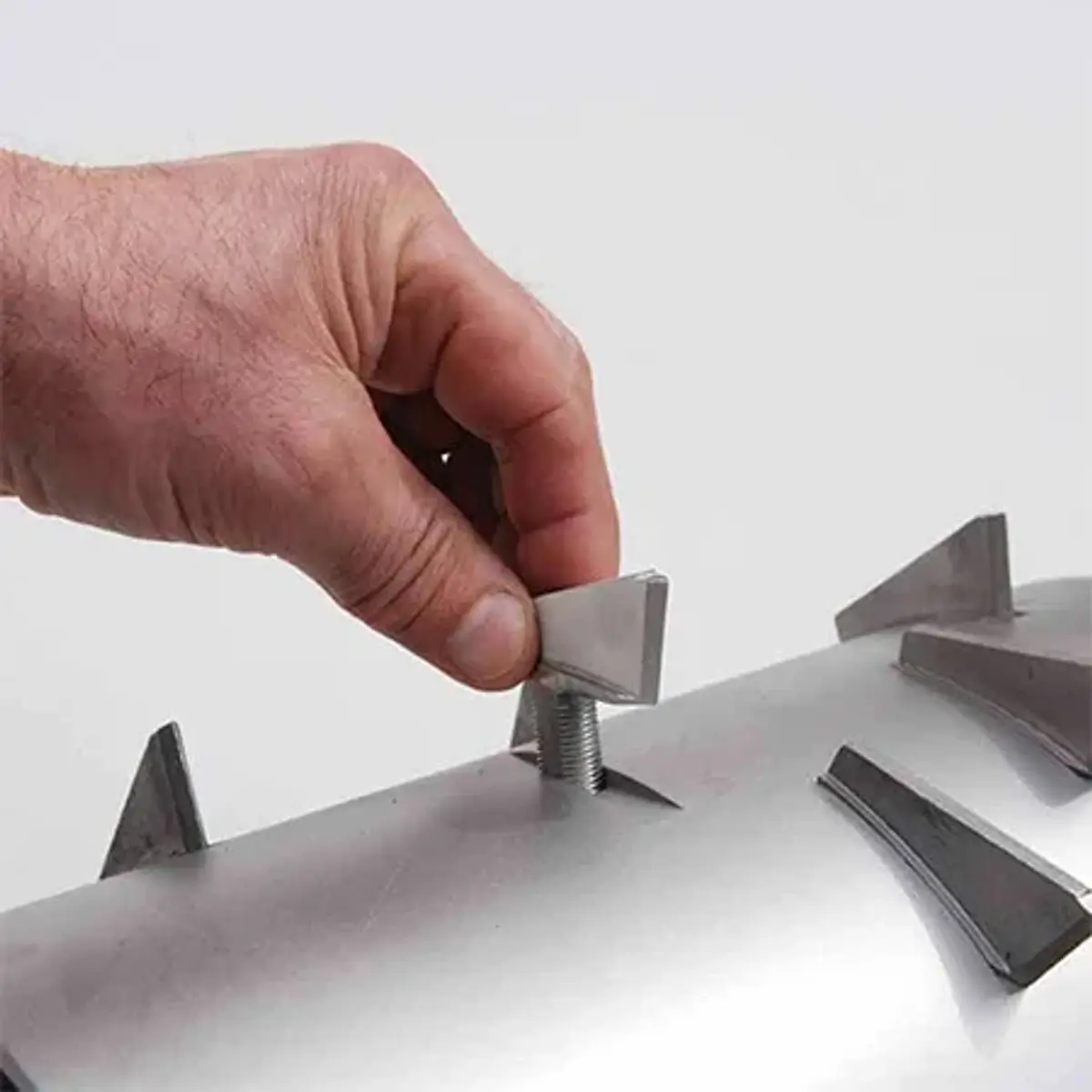

- Low friction cutter design with individually replaceable teeth
- Mounting Options
- Heavy-duty rectangular body with wide connecting flanges
- Construction Materials
- Carbon steel or stainless steel with optional polished interior
- Features
- High capacity, minimal fines, low vibration, low noise, no screens required
DELUMPER L lump breakers reduce lumps, crush minerals, improve product consistency, facilitate mixing, drying and conveying, and keep process lines running smoothly. These units have extraordinary processing capabilities on a wide range of materials including chemicals, sugar, food, minerals, urea, ammonium nitrate, salts, colors, plastics, pharmaceuticals and more. DELUMPER L Series crushers typically employ no screens.
Options
Customize this product for your application
These units feature a heavy, one piece rectangular body with wide connecting flanges, shaft seals, extra heavy bearings for long life and fully polished interior on stainless units. Each unit is precisely built, assembled, balanced, and aligned to exacting standards for smooth operation.
Dimensions
| MODEL # | A | B | C | D | E | F | G | TYP HP |
|---|---|---|---|---|---|---|---|---|
| DC1077L | 12"(305 mm) | 12"(305 mm) | 16.125"(410 mm) | 16.125"(410 mm) | 28"(711 mm) | 34"(864 mm) | 12"(305 mm) | 5 HP(3.72 kW) |

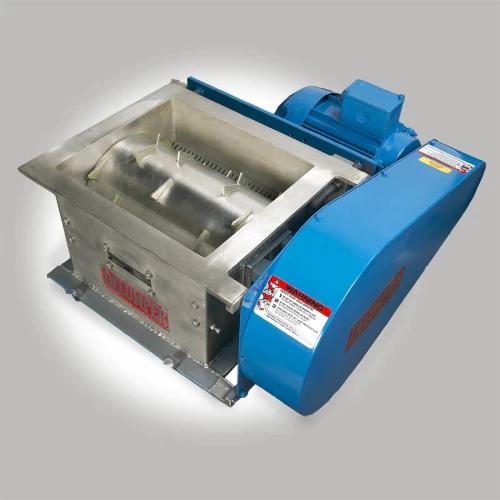

| DC1075L | 14"(356 mm) | 16"(406 mm) | 18.125"(460 mm) | 20.125"(511 mm) | 32"(813 mm) | 36"(914 mm) | 13"(330 mm) | 10 HP(7.50 kW) |
| DC2085L | 14"(356 mm) | 31"(787 mm) | 18.125"(460 mm) | 35.125"(892 mm) | 51"(1295 mm) | 40"(1016 mm) | 13"(330 mm) | 15 HP(11.18 kW) |
| DC2020L | 20"(508 mm) | 20"(508 mm) | 24.125"(613 mm) | 24.125"(613 mm) | 44"(1118 mm) | 50"(1270 mm) | 20"(508 mm) | 25 HP(18.64 kW) |
See It in Action

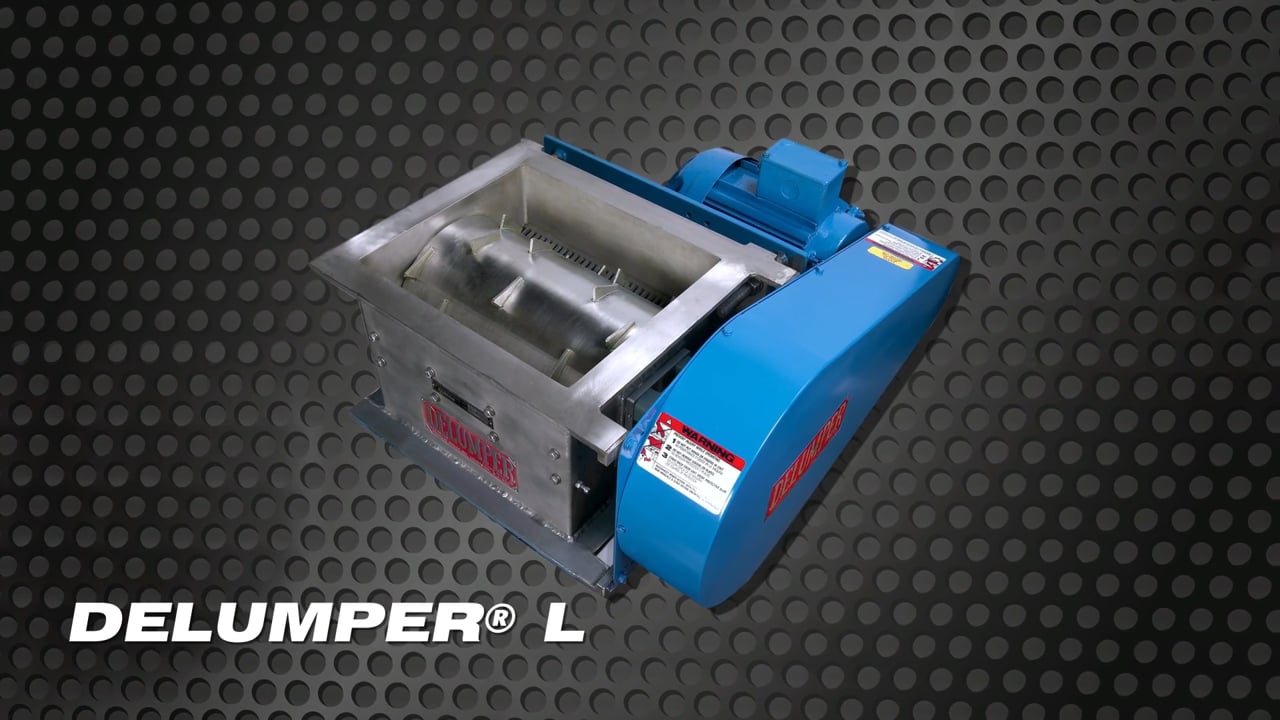

DELUMPER L In Action
Technical Specifications
- Cutter Technology
- Low friction cutter design with individually replaceable teeth
- Mounting Options
- Heavy-duty rectangular body with wide connecting flanges
- Construction Materials
- Carbon steel or stainless steel with optional polished interior
- Features
- High capacity, minimal fines, low vibration, low noise, no screens required
Need Help Choosing the Right Solution?
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
Applications & Usage
Where This Product Is Used

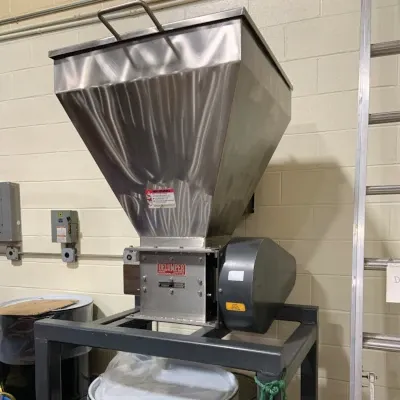

Food Processing Equipment
Franklin Miller's line of Delumpers and Shredders can be finely calibrated to output a specific size for any food processing equipment needs.
Mining

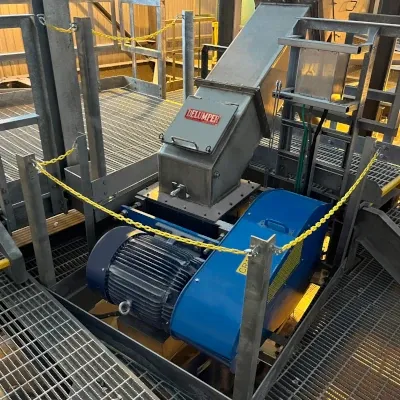

Delumper brand machines crushers deagglomerate coal, fly ash, phosphate, minerals and much. Our unit can handle capacities of 1000 tons an hour and more.
Industrial Chemical Crushers
Franklin Miller's crushers reduce solids, lumps, and agglomerates to precise sizes, ensuring product consistency and operational efficiency.
More to Explore
Related Crushers

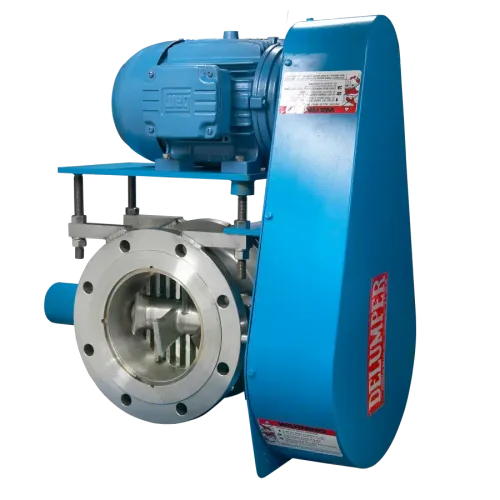

PIPELINE DELUMPER®
Ultra-compact inline crusher eliminates pipe blockages
DELUMPER® LP
Heavy-duty lump breaker with self-cleaning bar cage

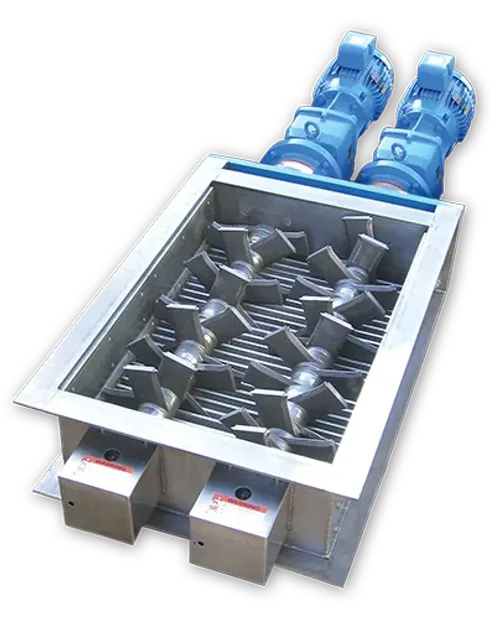

DELUMPER® Multi Shaft LP
Up to five shafts for massive multi-stage crushing
DELUMPER® S4
Sanitary polished crusher with clean-in-place design

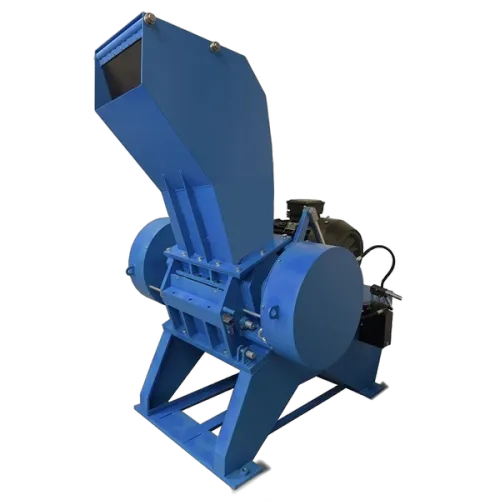

VULCANATOR® Rubber Granulator
Reduces full 75-lb rubber bales without heat buildup

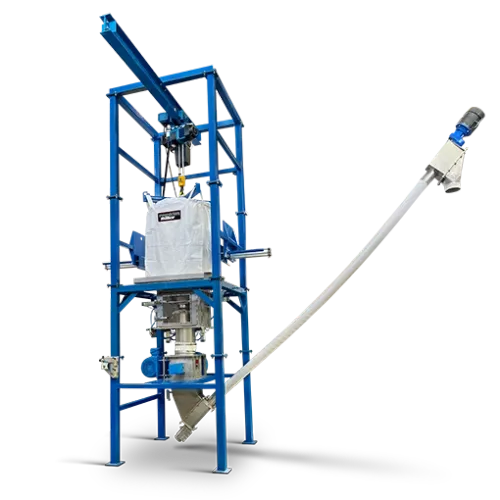

DELUMPER (BBU) Bulk Bag
