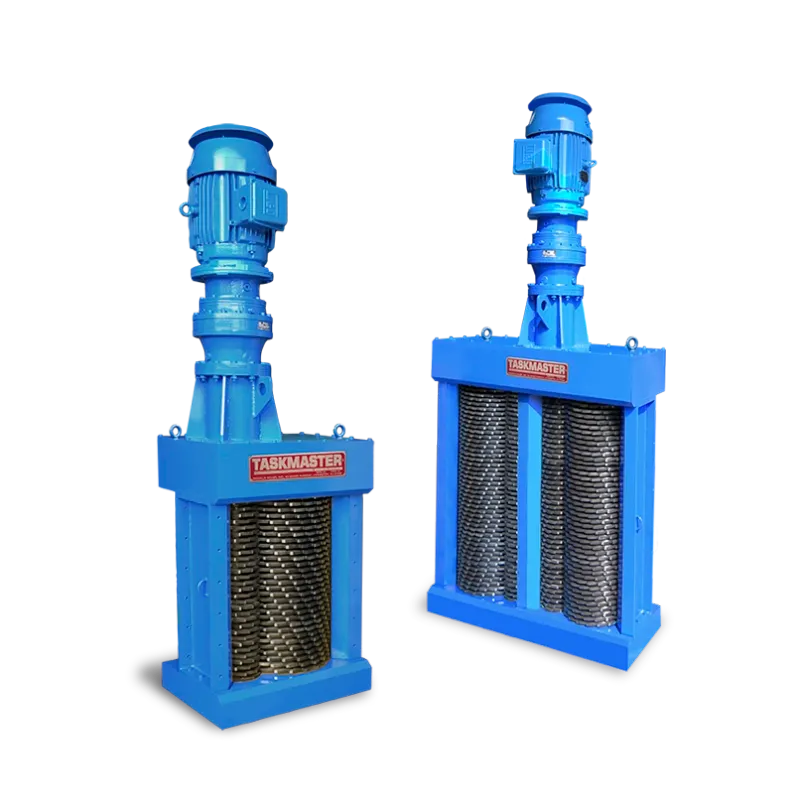

TASKMASTER® TITAN
High-flow channel grinder with full-cut twin shafts
The TASKMASTER® TITAN® is a high-flow channel grinder with a full-cut grinding design that delivers powerful solids reduction across the entire channel width for demanding wastewater applications.
Key Features
- Full-Cut Grinding Design
- High-Flow Channel Design
- Submersible Motor Option
- Hydraulic Drive Option
- Stainless Steel Construction
Established 1918 · Made in USA · Livingston, NJ
- TM14024
- TM14032
- TM14040
- TM14052
- TM14060
- TM14024D
- TM14032D
- TM14040D
- TM14052D
- TM14060D
- TM20024
- TM20032
- TM20040
- TM20052
- TM20024D
- TM20032D
- TM20040D
- TM20052D
- TM20060D
- TM22020
- TM22030
- TM22040
- TM22050
- TM22060
- TM22020D
- TM22030D
- TM22040D
- TM22050D
- TM22060D
Product Overview

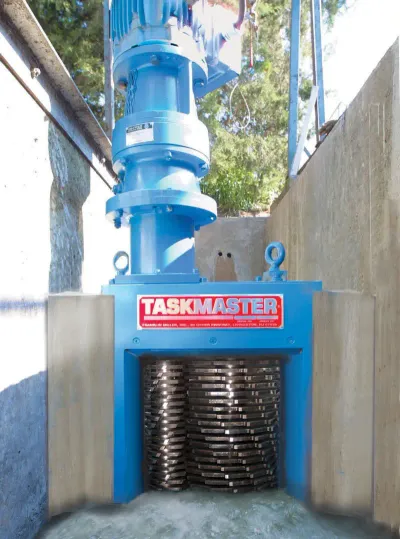

Description
- Cutter Technology
- Counter-rotating dual-shaft with CUTTER CARTRIDGE® option
- Mounting Options
- Open Channel or Inline Configurations
- Construction Materials
- Rugged alloy steel housing, hardened steel cutters
- Features
- High-capacity grinding, low headloss, reliable operation, easy maintenance, superior solids handling
These TITAN disks have a much larger diameter than the first stack providing the unit with higher capacity and more cutting surfaces. Yet another benefit of the TASKMASTER® TITAN is CUTTER CARTRIDGE® technology. The TASKMASTER® TITAN design is ideal for channel applications where high capacity, unsurpassed grinding performance and reliability are paramount.
Full Cut Grinding

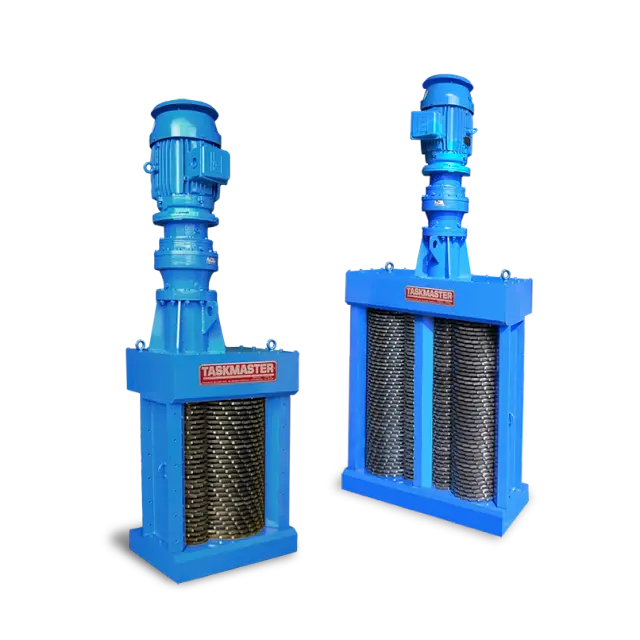

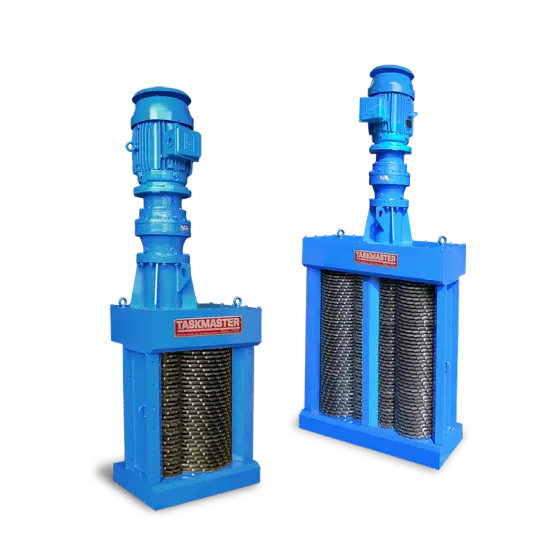

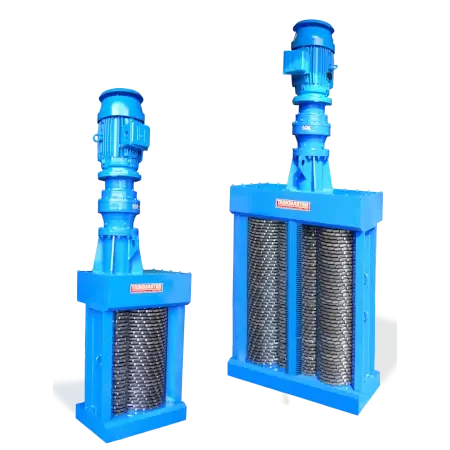

This unit features: full-cut grinding, superior feeding of large, bulky or round objects, efficient power usage, simple construction and an automatic reversing controller. The TASKMASTER® TITAN is available in several models: TM14000, TM20000 and the TM22000 in Standard and Duplex configurations.
Full-Cut grinders offer 100% cutting! The cutters handle the full flow capacity required without the need for auxiliary diverter screens. The result is fewer moving parts, more reliable cutting and greater durability.

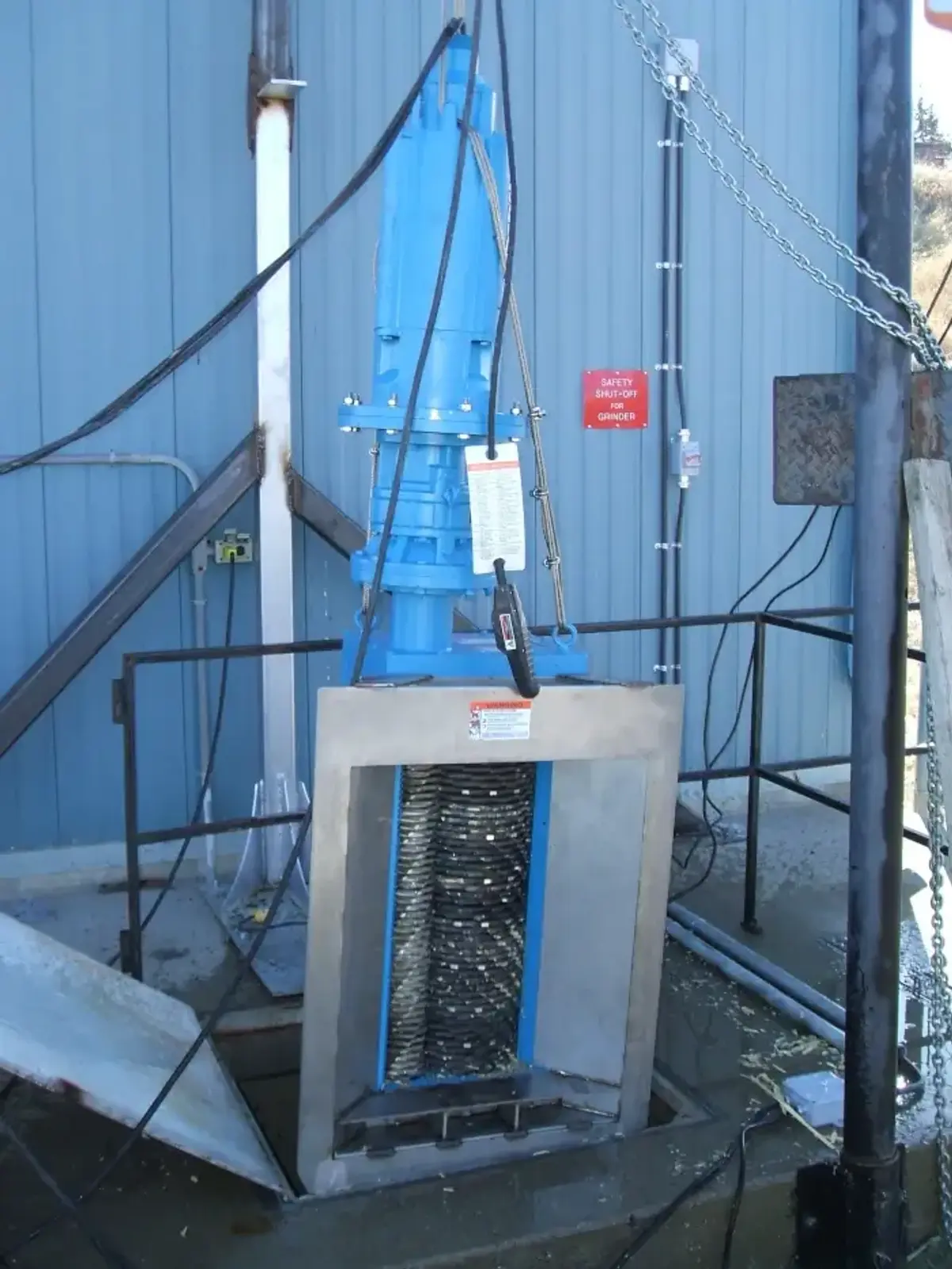

Options
Customize this product for your application
- High Flow Design
- Full Cut Grinding
- Wet Well Frame
- Pre-engineered FRP Manhole
- Hydraulic Drive
- Stand and Hopper
- Stainless Steel
- Submersible Motor
Features and Advantages
"FULL CUT" Grinder
The TASKMASTER TITAN features a "full cut" design. Our TITAN cutters have over twice the cutting surface area. With more cutter, there's less wear so your cutters stay sharper longer. Because their a larger "nip" (distance between cutter centers) it can handle larger objects and has better solids feeding too!

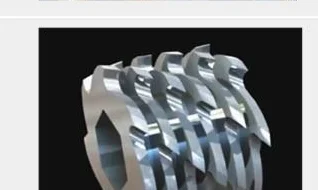

CUTTER CARTRIDGE® Technology
Intermeshing with the TITAN® cutters are our unique cutters designed with CUTTER CARTRIDGE Technology. These monolithic elements replace thin individual cutter and spacer disks resulting in a drastic increase in cutter strength and the elimination of cracking and stack collapse.
Energy Efficient, Open Design
With the TITAN's unique design, cutter cartridges intermesh with a second much larger cutter. Therefore, a high percentage of open area is achieved so it handle higher flow rates than conventional twin shaft grinders. Plus, energy use in minimized for reduced operating costs.

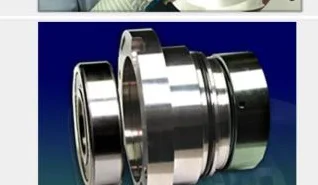

Dependable Bearing/Seal Cartridges
The TITAN features a highly dependable cartridge design bearing/seal system. The mechanical seals feature tungsten carbide faces and no springs which can become contaminated. The housing is constructed of hardened stainless steel for both corrosion and wear resistance.

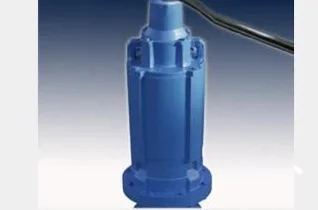

Submersible (IP68) Motor
The TITAN is provided for submerged applications with a true IP68 Explosion Proof Submersible Motor. This optional motor is a no compromise solution that is rated to run continuously while submerged as well as in air. These motors are supplied with UL or alternately ATEX certifications.
Technical Specifications
- Cutter Technology
- Counter-rotating dual-shaft with CUTTER CARTRIDGE® option
- Mounting Options
- Open Channel or Inline Configurations
- Construction Materials
- Rugged alloy steel housing, hardened steel cutters
- Features
- High-capacity grinding, low headloss, reliable operation, easy maintenance, superior solids handling
Need Help Choosing the Right Solution?
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
Applications & Usage
Where This Product Is Used
Wastewater Treatment
Franklin Miller manufactures a wide range of wastewater treatment equipment including grinders and screens. Our equipment is engineered for reliability and simplicity.
Wipes
Franklin Miller’s wipes grinders can handle most of the difficult waste including flushable wipes. Our grinders help prevent pumps from clogging worldwide.
More to Explore
Related Grinders
TASKMASTER® TM6500
Compact twin-shaft with CUTTER CARTRIDGE technology
TASKMASTER® TM8500 Wastewater Grinder
Twin-shaft CUTTER CARTRIDGE® grinder, easy service

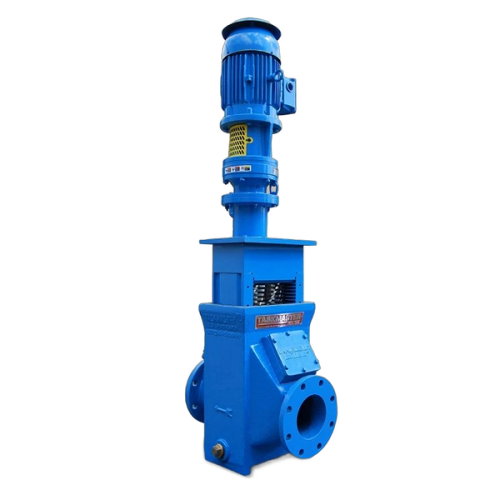

TASKMASTER® TM8500 Inline
Inline pipeline grinder with CUTTER CARTRIDGE tech
TASKMASTER® TM1600 Grinder
Twin-shaft grinder for rags, sludge, and biosolids

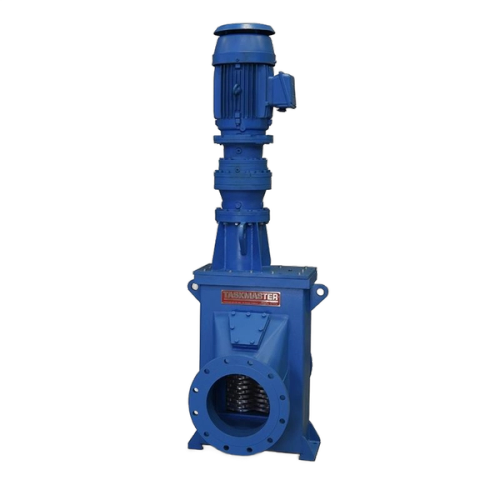

TASKMASTER® TM1600 Inline
