April 26, 2024

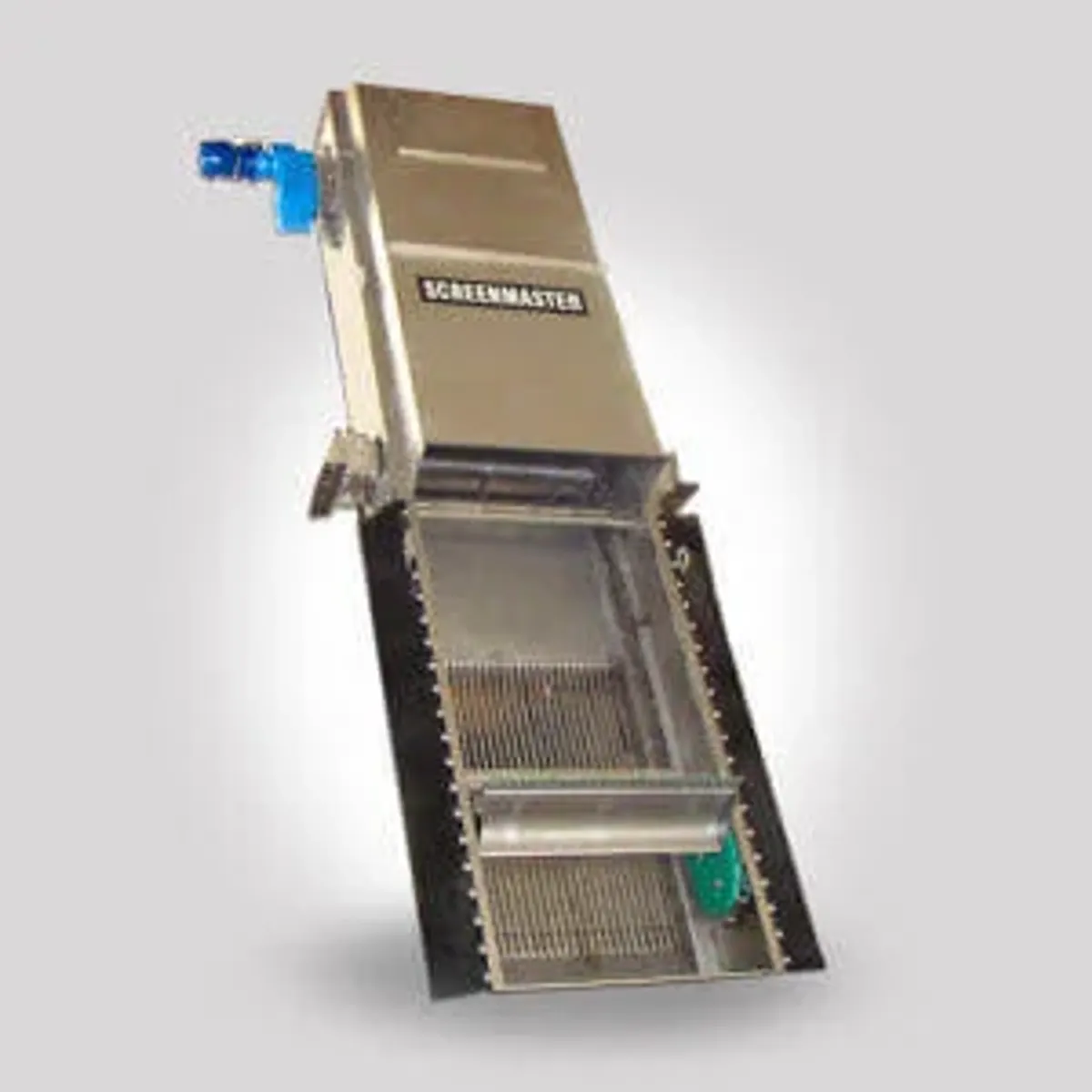

The SCREENMASTER® CS Versatile Bar Screen

Jane Cooper

The SCREENMASTER® CS provides efficient cleaning of a bar screen rack and removal of solids from rectangular channel installations. This versatile unit employs a simple, yet effective rotary front clean/front return raking mechanism. It installs at a 75° inclination so it has a very small footprint. This streamlined unit is fully enclosed above the water line.

The SCREENMASTER CS bar screen provides smooth quiet operation and is highly reliable. It employs rake heads that penetrate the screen slots as they reach the channel bottom and lift accumulated debris up to a discharge height of up to 38 ft (11.6 m) from the channel bottom. The screenings drop out the unit’s discharge chute and into a SPIRALIFT® SC Screenings conditioner/washer or into a bin or auxiliary conveyor.

The SCREENMASTER bar screen is fabricated in stainless steel including the unit’s oversized drive chains. Unlike other screens, the SCREENMASTER’s design employs no bottom bearings or sprockets thereby eliminating a major cause of maintenance problems.

The SCREENMASTER CS bar screen is available with a choice of slots openings from 2 inch down to 1/4″. They are available for any channel width up to 78” wide (2 m).
