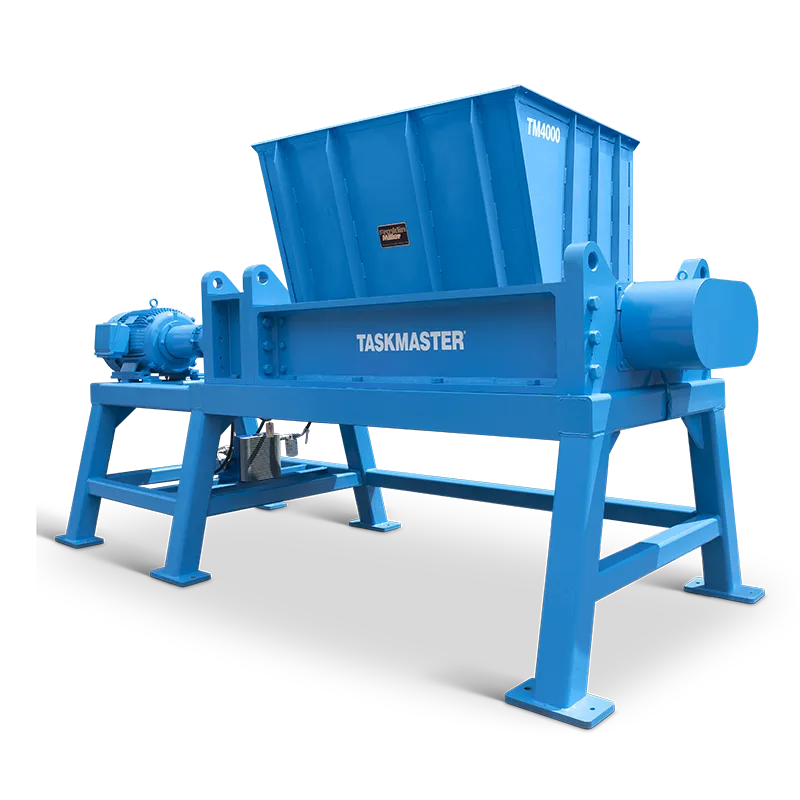

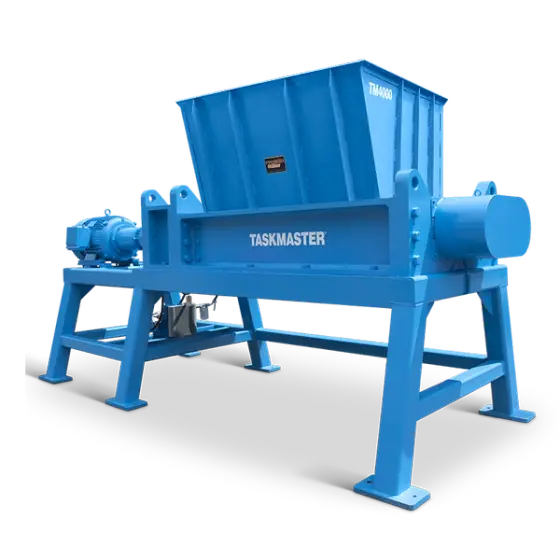

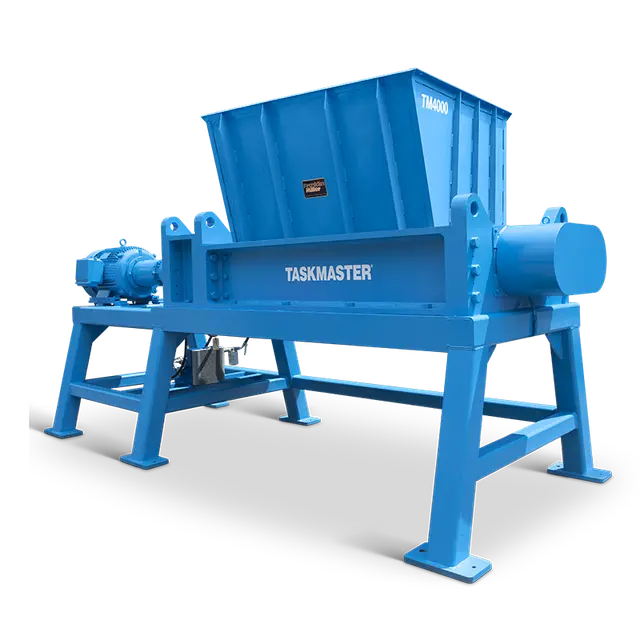

TASKMASTER® TM4000
Largest model shreds pallets, drums, tires, and more
The TASKMASTER® TM4000 is Franklin Miller's largest heavy-duty industrial shredder, engineered for maximum durability and versatility across the most demanding high-volume size reduction applications.
Key Features
- Heavy-Duty Construction
- Versatile Material Reduction
- High Torque at Low Speeds
- Precision Engineering
Established 1918 · Made in USA · Livingston, NJ
Product Overview
Key Properties
- Cutter Technology
- Equipped with 2 " cam cutters for efficient shredding.
- Construction
- Heavy-duty construction with 7.4 " heat-treated alloy steel hexagonal shafting and steel plate and channel body.
- Drive Mechanism
- Planetary gear drive system for low-speed, high-torque operation.
- Throat Opening
- Adjustable throat opening ranging from 40 " x 54 " (762 mm x 1371 mm) to 40 " x 72 " (762 mm x 1828 mm).
- Heavy Construction Design: With 7.4″ heat-treated alloy steel hexagonal shafting, 2″ cam cutters, heavy steel plate and channel body construction, the TM4000 is built for robust and long-lasting performance.
- Versatile Reduction Capabilities: This shredder can reduce a wide variety of items including pallets, steel drums, wood, documents, electronic components, hazardous waste, mattresses, solid propellants, plastics, and various tire sizes.
- Adjustable Throat Opening: The TM4000 offers a throat opening that ranges from 40″ x 54″ (762 mm x 1371 mm) up to 40″ x 80″ (762 mm x 1828 mm), providing flexibility in handling different materials.
- Low Speed, High Torque Design: Utilizing a planetary gear drive, the TM4000's design enables high torque delivery at low speeds, enabling effective shredding of tough solids and reducing the volume for further processing or disposal.
- Quality Components and Superior Engineering: The TM4000 is constructed using quality components and is designed with superior engineering, ensuring the highest level of performance and reliability for heavy-duty industrial applications.
Options and Add Ons
Customize this product for your application
- Material-Specific Configurations: Including setups optimized for electronic waste, steel drums, pallets, car tires, light sheet metal, construction debris, and more.
- Modular Add-Ons: Accommodate site-specific workflows and materials with optional enhancements.

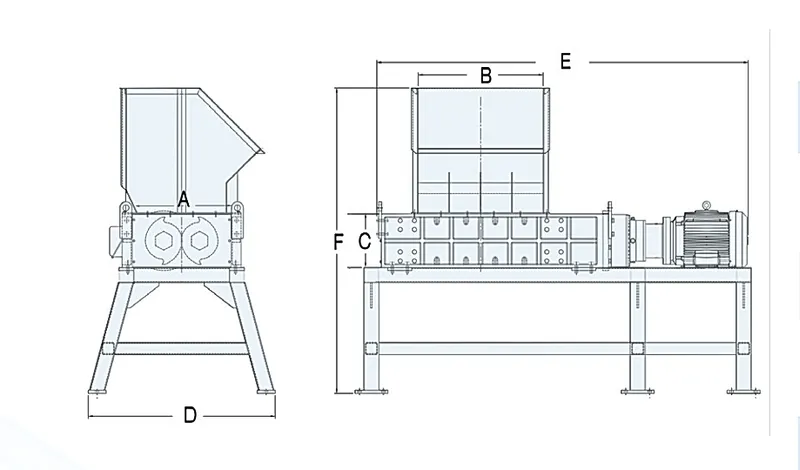

Dimensions
| MODEL NO. | TM4060 | TM4080 |
|---|---|---|
| Dimensions | ||
| A. Input Width | 40″(1016 MM) | 40″(1016 MM) |
| B. Input Length | 60″(1524 MM) | 80″(2032 MM) |
| C. Height | 27.5″(698.5 MM) | 27.5″(698.5 MM) |
| D. Overall Width | 55″(1397 MM) | 55″(1397 MM) |
| E. Overall Length | 196″(4979 MM) | 216″(5486 MM) |
| F. Overall Height (Typical) | 108″(2743 MM) | 108″(2743 MM) |
| Hopper Opening | 66″ x 60″(1676 MM x 1524 MM) | 66″ x 80″(1676 MM x 2032 MM) |
| Shaft Size | 7.9″ Hex(201 MM) | 7.9″ Hex(201 MM) |
| Cutter Diameter | 21″(534 MM) | 21″(534 MM) |
| Cutter Thickness (Typical) | 2″ or 4″(51 MM or 102 MM) | 2″ or 4″(51 MM or 102 MM) |
| Specifications | ||
| Horsepower (Min/Max) | 100–150 HP(73.5–110 kW) | 100–150 HP(73.5–110 kW) |
| Cleaning Combs | Yes | Yes |
| Weight (Machine only) | 21,500 lbs.(9,752 kg) | 24,500 lbs.(11,113 kg) |
| Drive | Planetary Gear | Planetary Gear |
| Shaft Connection | Spline | Spline |
| Shaft Seals | Labyrinth | Labyrinth |
See It in Action
TASKMASTER TM4000 In Action
Technical Specifications
- Cutter Technology
- Equipped with 2 " cam cutters for efficient shredding.
- Construction
- Heavy-duty construction with 7.4 " heat-treated alloy steel hexagonal shafting and steel plate and channel body.
- Drive Mechanism
- Planetary gear drive system for low-speed, high-torque operation.
- Throat Opening
- Adjustable throat opening ranging from 40 " x 54 " (762 mm x 1371 mm) to 40 " x 72 " (762 mm x 1828 mm).
Need Help Choosing the Right Solution?
Our engineers have over a century of experience matching equipment to applications. Tell us about your process and we'll recommend the best fit.
Applications & Usage
Where This Product Is Used
Solar Panels
Explore our range of solar panel shredders, crafted to efficiently recycle and recover valuable materials from expired solar panels. Discover how our cutting-edge solutions aid in sustainable waste management.
Metal Shredders
Franklin Miller’s industrial metal shredders are the industry standard for any scrap metal recycling operation. Our shredders handle hard drives, circuit boards, laptops, and much more.
Bulk Paper Shredding
Industrial document shredders can handle a large volume of papers, documents, cardboard and more with ease. Check our document shredders online.

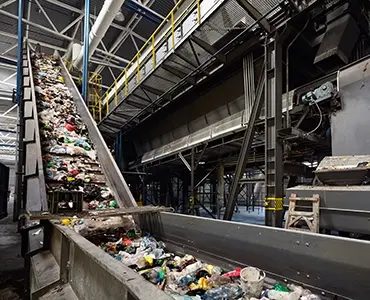

Recycling
Taskmaster recycling shredders are used at recycling facilities around the world. Our shredders can be configured to meet the needs of any application.
Tires
Franklin Miller tire shredders can shred car, off-road and light truck tires without debeading. Our tire shredders provide cost-effective tire shredding.
