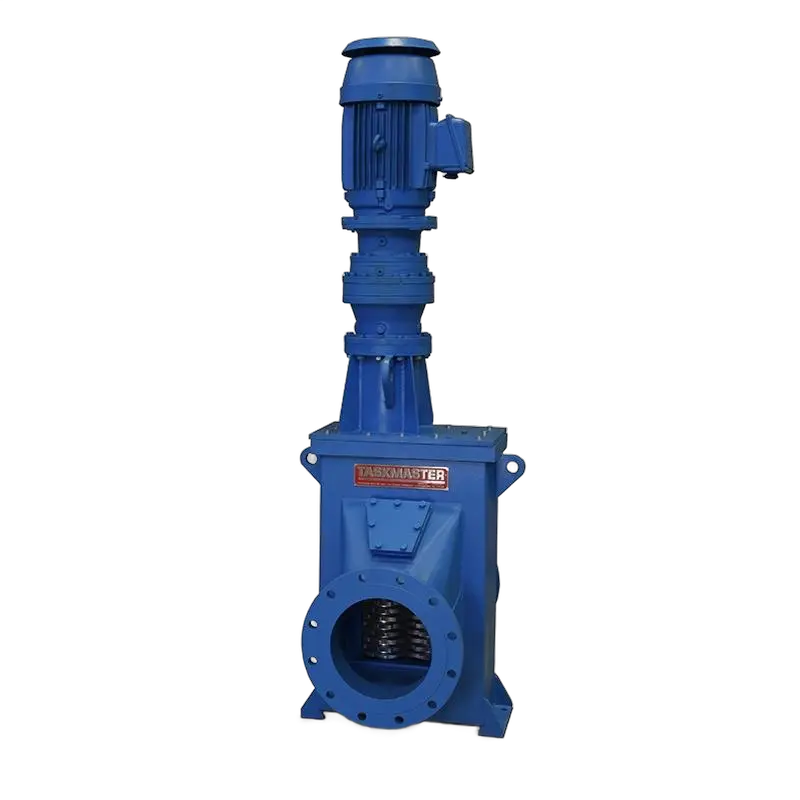

TASKMASTER® TM1600 Inline
Pressure-rated flange housing for pipeline install
The TASKMASTER® TM1600 Inline grinder features heavy solids reduction capability in a pressure-rated, drop-in flange housing for direct installation into pressurized pipeline systems.
Key Features
- Heavy Duty Grinding
- Drop-In Flange Housing
- Cutter/Spacer Combination
- Shaft Seal Protection
- Pressure-Rated Design
Established 1918 · Made in USA · Livingston, NJ
- TM162012
- TM162016
- TM163016
- TM163018
- TM163020
Product Overview
Description
- Cutter Technology
- High-torque twin-shaft grinding with optional CUTTER CARTRIDGE® design
- Mounting Options
- Inline pipe installation with drop-in housing
- Construction Materials
- Heavy-duty steel frame, hardened alloy steel cutters
- Features
- Inline installation, high-capacity grinding, low maintenance, durable design, easy serviceability
The TASKMASTER TM1600 has proven its unsurpassed capabilities and valuable service in hundreds of installations worldwide. This unit typically employs a 10 HP (7.5 kw) motor and direct drive which provides high torque, low-speed operation to plow through tough solids.
Options
Customize this product for your application
The TASKMASTER® TM1600 employs unique cutter-spacer combo's. These cutting elements combine individual cutters and spacers into high strength elements for high strength and reduced overall components. The cutter/spacers are available in a variety of profiles to match your exact application requirement. They are constructed of high strength alloy steel and then hardened and ground. They also available in hardened stainless steel

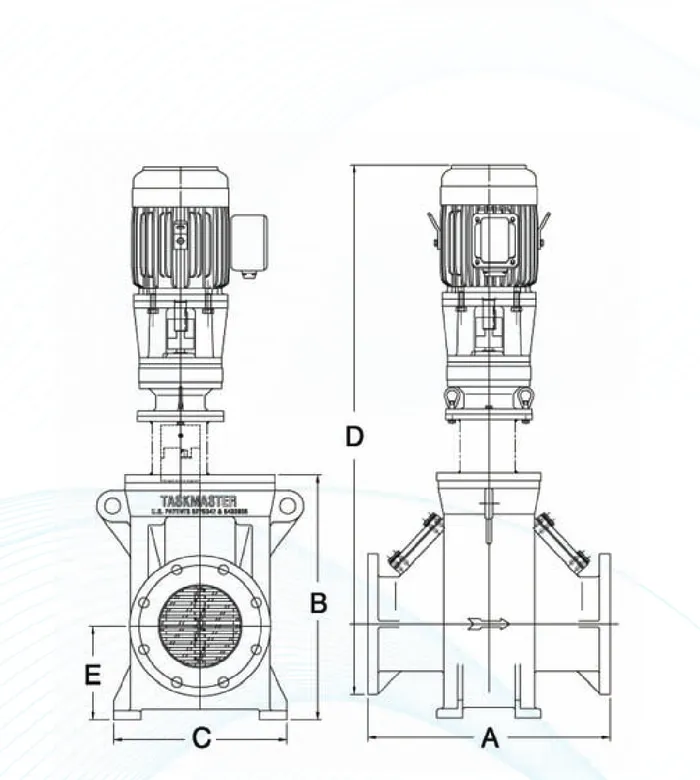

Dimensions
| Model No. | Flange | A | B | C | D | E | Flow GPM |
|---|---|---|---|---|---|---|---|
| TM162012 | 12″(300mm) | 35.25″(895mm) | 36.75″(933mm) | 25.75″(654mm) | 79.5″(2019mm) | 13.5″(343mm) | 3200(202 l/s) |
| TM162016 | 16″(400mm) | 43.25″(1098mm) | 36.75″(933mm) | 25.75″(654mm) | 79.5″(2019mm) | 15.37″(391mm) | 3800(240 l/s) |
| TM163016 | 16″(400mm) | 43.25″(1098mm) | 46.75″(1187mm) | 25.75″(654mm) | 89.5″(2274mm) | 15.25″(387mm) | 5000(315 l/s) |
| TM163018 | 18″(450mm) | 47.25″(1200mm) | 46.75″(1187mm) | 25.75″(654mm) | 89.5″(2274mm) | 16.25″(413mm) | 6100(385 l/s) |
| TM163020 | 20″(500mm) | 49″(1245mm) | 46.75″(1187mm) | 25.75″(654mm) | 89.5″(2274mm) | 17.5″(445mm) | 6700(422 l/s) |
Technical Specifications
- Cutter Technology
- High-torque twin-shaft grinding with optional CUTTER CARTRIDGE® design
- Mounting Options
- Inline pipe installation with drop-in housing
- Construction Materials
- Heavy-duty steel frame, hardened alloy steel cutters
- Features
- Inline installation, high-capacity grinding, low maintenance, durable design, easy serviceability
