Septage Receiving Station

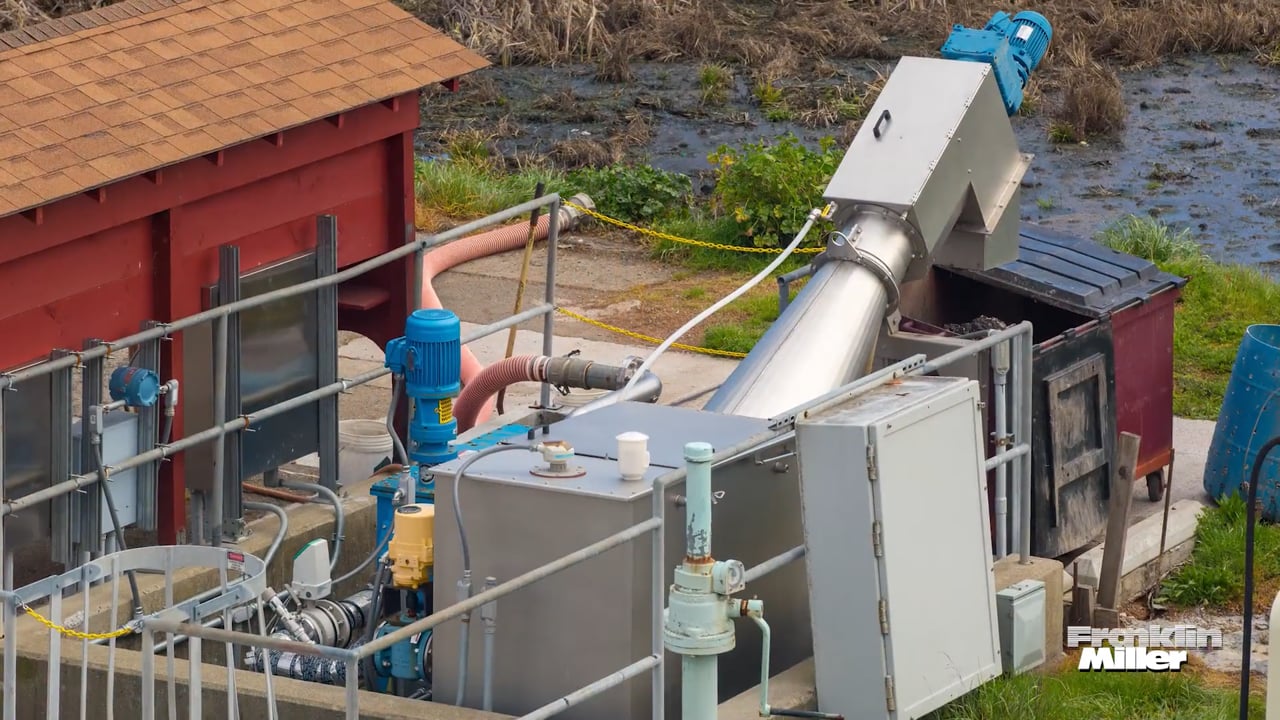

With a Franklin Miller Septage Dump and Receiving Station and full septage receiving stations your facility can quickly organize, control and administer the receiving of septage solids from haulers.  The septage receiving station is a comprehensive modular system that lets you match its capabilities to exactly what is needed for your facility.  With Franklin MIller you get a choice of components more complete than available from any other supplier.

The standard septage receiving system is supplied with a pipe manifold,  valve, flow meter, HaulerStation control system and HaulerLogic software. This system gives you full control of your receiving operation while providing haulers with a receiving facility that is easy to operate so they can discharge their loads quickly and hygienically.

In addition to the standard equipment, the Franklin Miller system includes such options as:  a system enclosure,  ph monitor, TASKMASTER grinder and SPIRALIFT SR screening and washing system.  When coupled with the SPIRALIFT SR grinding and screening system, the HAULERMASTER provides a complete turn-key solution for automating the receiving of septage into a sewage plant headworks without burdening either plant personnel or equipment.

The Franklin Miller receiving station is the only system to have  grinders, screens, controllers, and software supplied by one company which creates a system with unparalleled capabilities.

Category: . Tag: .
  • The Control
  • Level 1: Instrumentation
  • Level 2: Grinding
  • Level 3: Screening
  • Software

Hauler Station Control
The Control

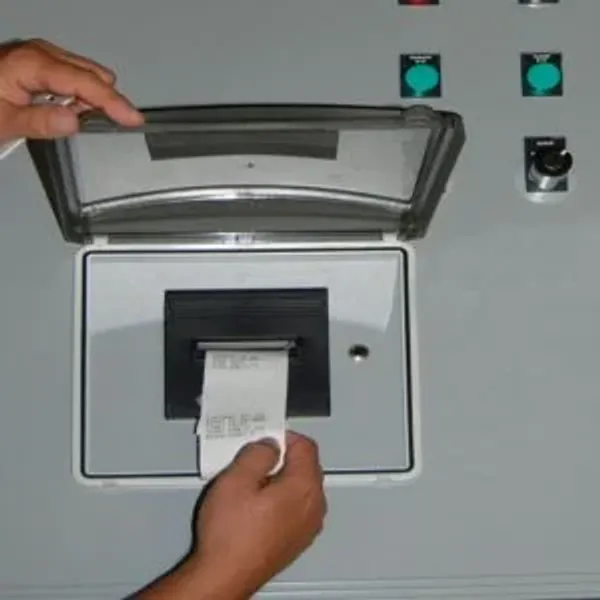

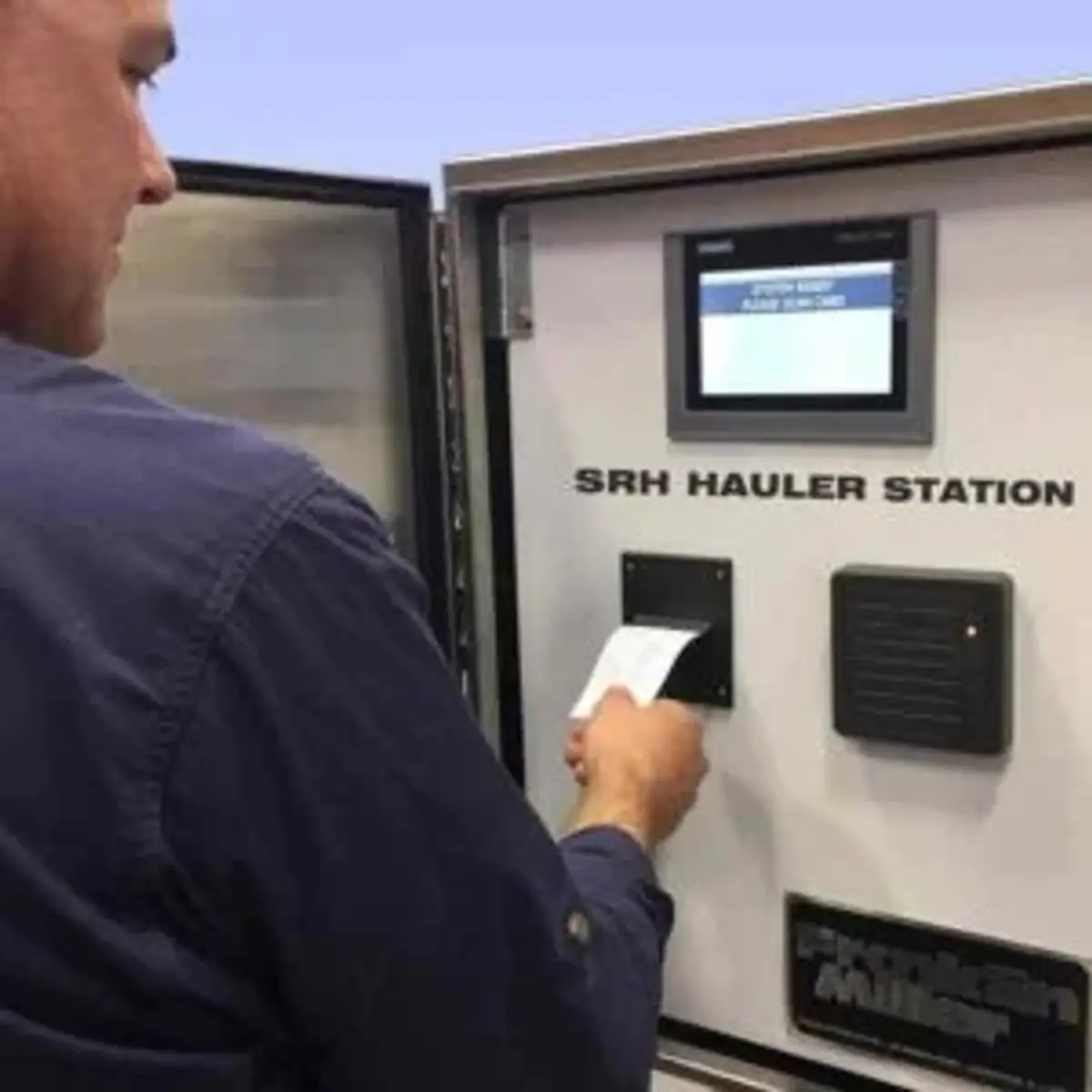

The Hauler Station is a comprehensive control system that provides an automated interface for septage truck haulers to securely access the Franklin Miller Septage Receiving Station without the need for plant personnel. The Hauler Station identifies haulers via a card swipe system, permits access, tracks loads, records transactions and prints transaction receipts. Drivers begin the process with one swipe of their access card. Once the driver’s ID is validated by the system, the hauler simply touches the start button and the system’s automated operation is initiated. The Hauler Station is equipped with a touch screen HMI interface that displays transaction information, the system status and provides access for system administration. The system can be supplied with one or two enclosures.

Features:

  • Allows Hauler to Operate System without Operator
  • Records Transaction Data
  • Prints Receipt for Hauler
  • Card System Authenticates Hauler
  • HMI Display and Input
  • One or Two Enclosures

Controller-station_retouch_label_web

Level 1

The Level 1 system includes everything required to operate, monitor, control, and administrate a dump station.

Includes:

  • Pipe Mainifold
  • Valve
  • Flow Meter
  • Controller
  • HaulerLogic Software

TT

Level 2

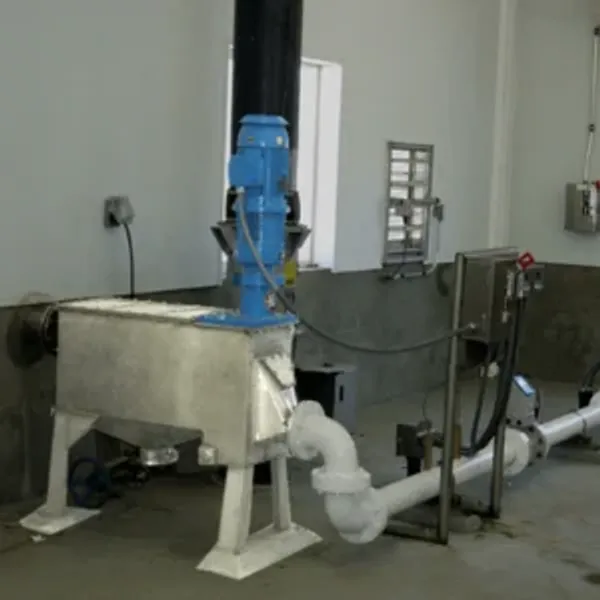

The Level 2 system includes everything included in the Level 1 system plus a Taskmaster TT Grinder. The Taskmaster TT Grinder removes rock and heavy solids from the flow and grinds lighter solids in order to protect pumps and other plant equipment.

Includes:

  • Pipe Manifold
  • TASKMASTER TT Grinder with Rock Trap
  • Valve
  • Flow Meter
  • Controller
  • HaulerLogic Software

SPIRALIFT-SR30-Installation

Level 3

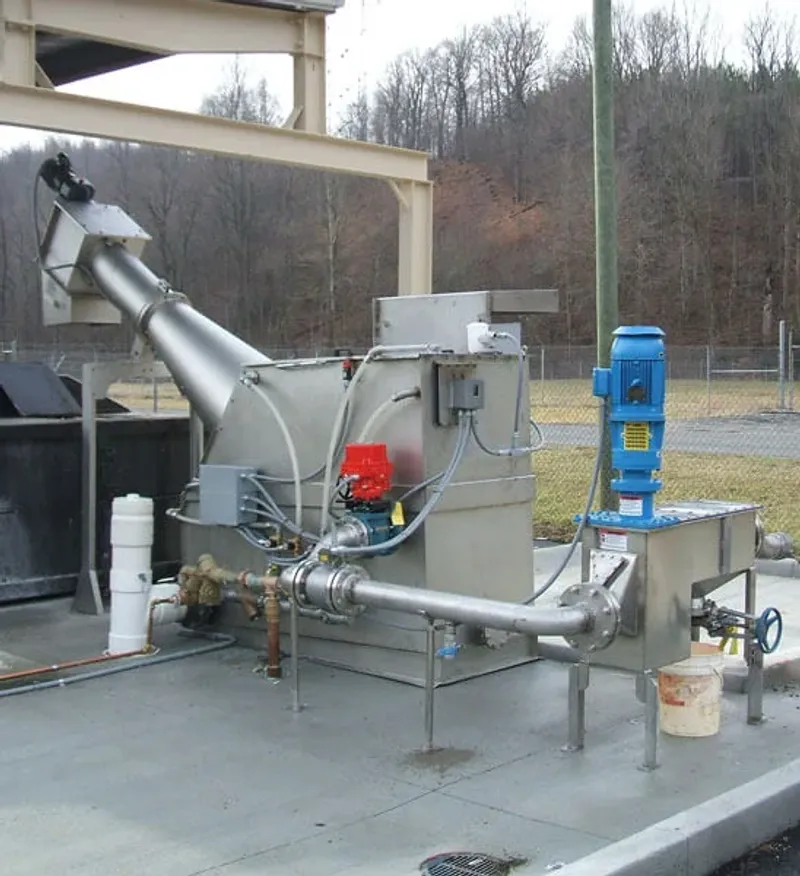

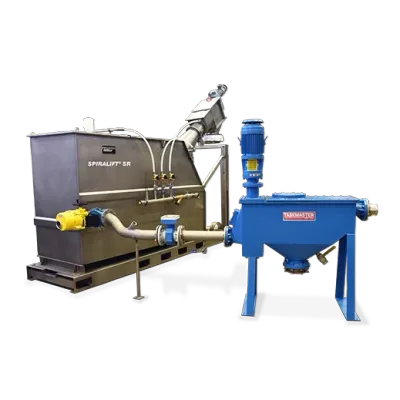

The Level 3 system includes everything included in the Level 2 system plus a Spiralift SR Septage Receiving Station. The Spiralift SR Septage Receiving Station washes, compacts, and cleans solids in one integrated system.

Includes:

  • Pipe Manifold
  • TASKMASTER TT Grinder with Rock Trap
  • SPIRALIFT Screening system
  • Valve
  • Flow Meter
  • Controller
  • HaulerLogic Software

Screen 1

Software

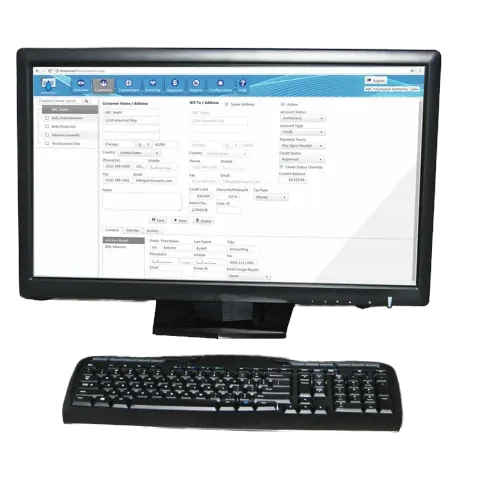

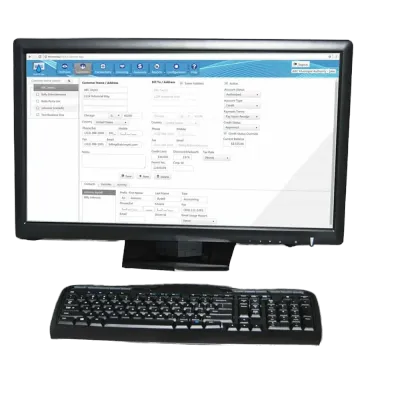

HaulerLogic software was specifically developed to monitor, track and record hauler transactions. This comprehensive full-function application interfaces with and extends the capabilities of HAULERMASTER water fill systems as well as SPIRALIFT® Septage Receiving Systems.

With HaulerLogic software, you can administer and monitor hauler transactions, add or modify users and trucks, create, view or print single or multiple invoices, grant or disable hauler rights to use the system, display or print account balances and more.

HaulerLogic receives data from one or more FMI Hauler Station control systems and records transactions to its highly reliable SQL database engine. Its database back end runs on Windows-based PCs or servers. Operators can access the software on one or more Windows or Apple desktops, laptops or a variety of tablets. The software is designed to run with a single station or scale to a network of stations in multiple locations. The system’s unique auto-synchronization assures transaction data is not lost, even in the event of a lost connection.
