PIC-111_web

Powerful, Hi-Flow Twin Shaft Channel Grinder

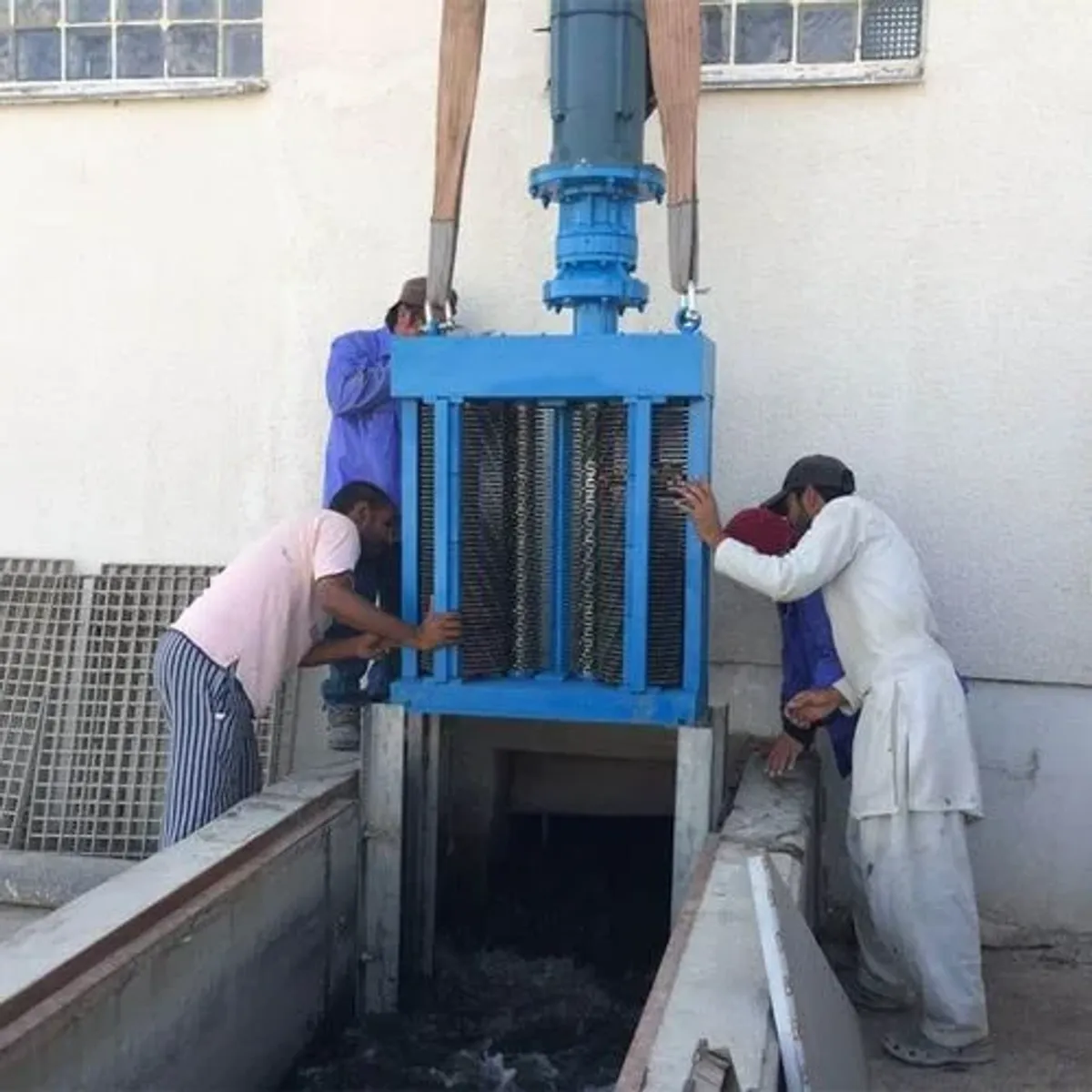

The TASKMASTER® TITAN® Duplex (TM 14000D) builds on the TITAN’s major innovation in twin shaft channel grinding technology. The TITAN combines powerful channel grinding capability with high flow capacity and low headloss. The result is superior performance in both grinding and liquid handling. With the TASKMASTER TITAN Duplex two complete set of twin shaft cutter stacks are employed for twice the flow capacity and channel width. This unit’s unique design employs two counter-rotating shafts, but its intermeshing cutter stacks have two different diameters. One opening is much larger than the other, providing more efficient feeding and reduction of bulky solids and allowing greater flow to pass through freely. The finely ground output provides excellent protection of pumps, filter presses and other downstream equipment. With its massive array of cutting edges, cutter life and unit strength are enhanced.
The TITAN employs a 3hp or 5hp motor and cycloidal gear drive, cutter cartridge technology and a 14″x 12″ up to 14″x 60″ inlet cutting chamber size for handling flow rates up to 8 mgd. The TASKMASTER TITAN is provided with a PLC driven S260 automatic reversing control system which automatically senses jam conditions and jogs the cutters in a reverse cycle to clear the obstruction.

To read about the Tasmaster Titan, click here.

To read about the Titan TM22000, click here.
